ANSI B16.11 Socket Welding Flange
| Size | 1/2' ' (DN15) to 48' ' (DN1200) |
| Standard | ANSI, API, DIN, GOST, BS, AS, JIS, JPI |
| Material | Carbon Steel: A105(N) C22.8 ST-37.2 S400 S440 SQ235(CS20#) A106B A53 Q345 Stainless Steel: 304, 304L, 316, 316L, A350 LF2, 321, 347, 347H Alloy Steel: ASTM A182 F1, F5a, F9, F11, F12, F22, F91 |
| Pressure | Class150, 300, 600, 900 1500 and 2500 PN6, PN10, PN16, PN25, PN40 and PN64 JIS 5K, 10K, 16K and 20K |
| Type | Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint , Plate, etc |
| Facing | RF, FF, FM-M, T-G, RJ |
| Finish | Transparent oil, rust-proof oil, hot galvanizing |
| Connection | Butt Weld & Socket Weld & Thread |
| Marking | standard or as customer' s need |
| Inspection | in-house or the third party |
| Application | chemical industry, petroleum industry, construction industry, and so on |
| Delivery Time | usually within 25-30 days after we have confirmed your order |
| MOQ | 10 pieces |
| Packing | wooden cases or wooden pallets or as per customer' s requirement |
| Productivity | 300000 tons per year |
Types' Specification

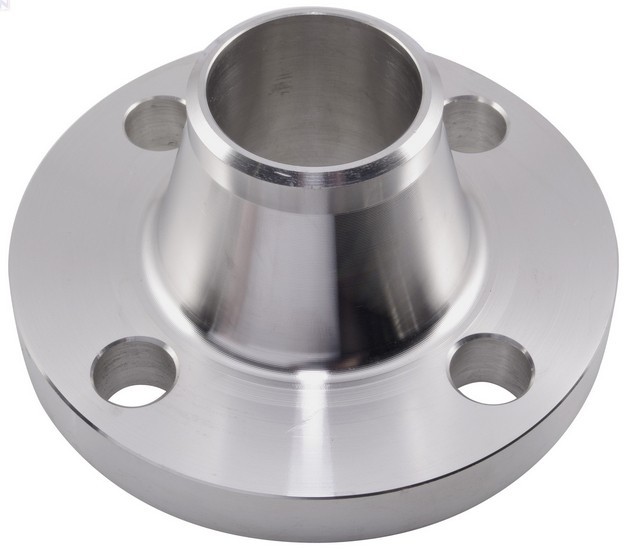

Welding neck
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution

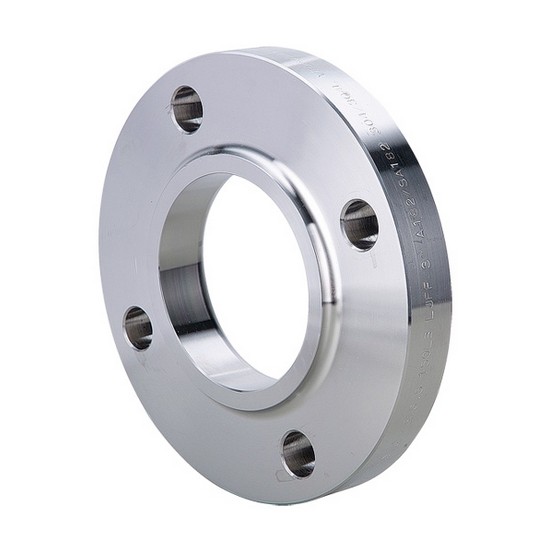

Slip-on
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
Lap joint
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
Threaded
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges

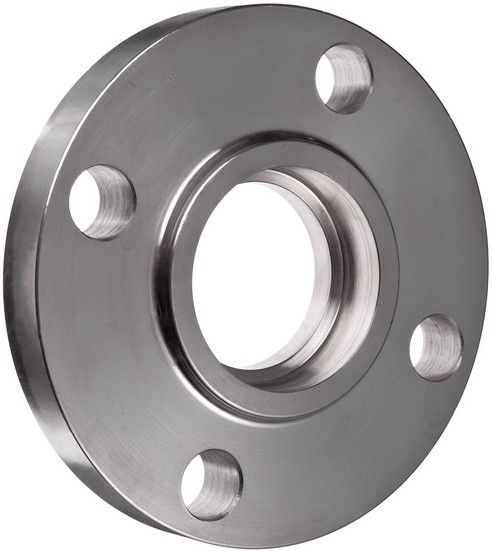

Socket welding
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub
Blind
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings, Customer Drawings

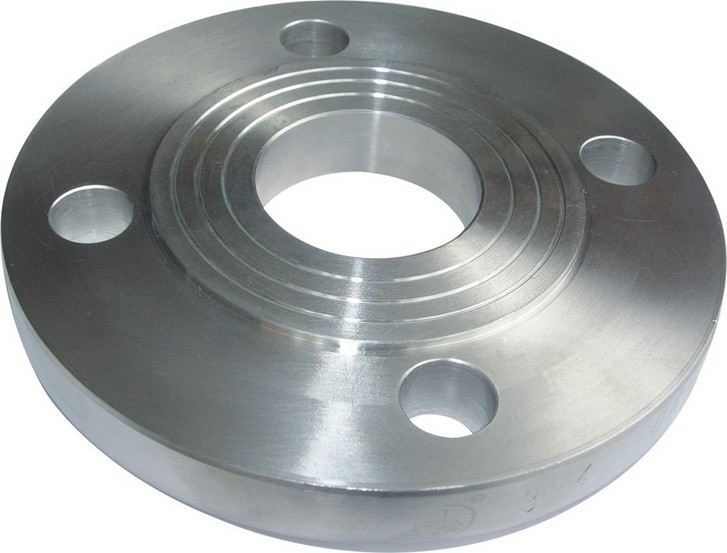

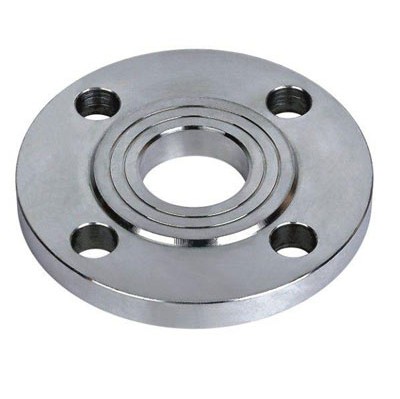

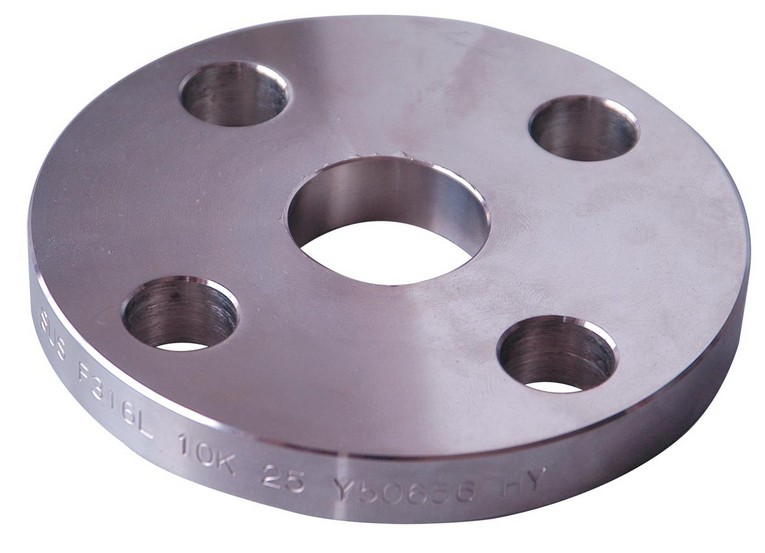

Product Pictures:
Our Advantages:
1.Professional manufactory.
2.Trial orders are acceptable.
3.Flexible and convenient logistic service.
4.Competitive price.
5.100% testing,ensuring the mechanical properties
6.Professional testing.
FAQ:
Q: Is the price of your products lower than others?
A: We can not promise you the lowest price,because the best quality is what we pursue firstly.
Q: Can you provide us with some samples for testing?
A: Of course, we can offer you samples. You only need to bear the freight and samples' charge can be negotiated.
Q: How about your service?
A: We have pre-sale service, in-sale service and after-sale service and you can know about them in our service.
