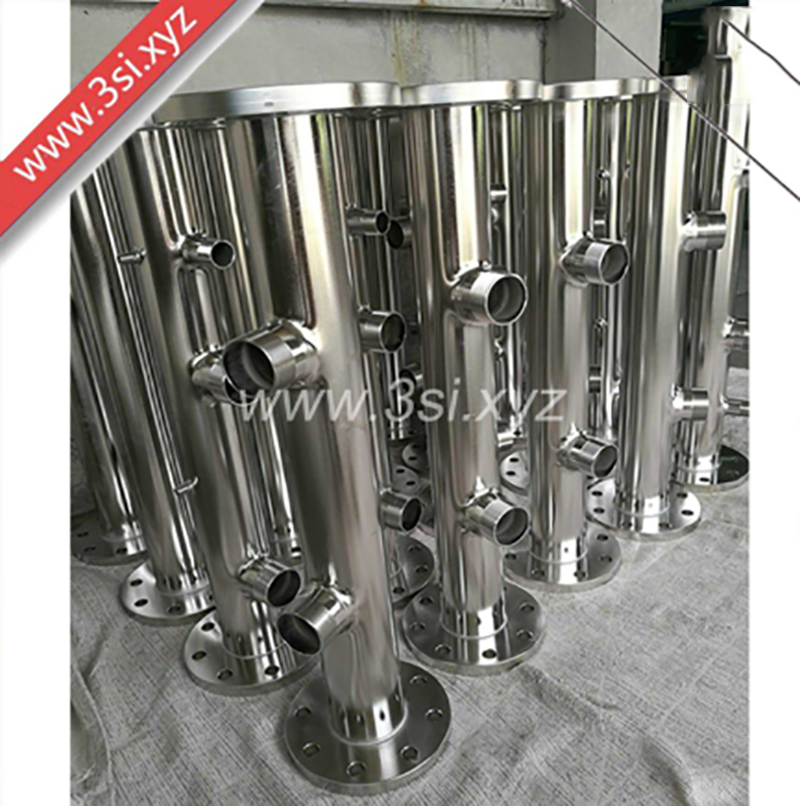

Port configuration is one of the most critical yet frequently misunderstood aspects of manifold specification. Incorrect port sizing, incompatible thread types, or inadequate station spacing can derail an otherwise well-designed system. This guide provides a practical framework for port selection.
Understanding Port Sizing:
Port sizes follow standardized pipe thread dimensions, typically National Pipe Thread (NPT) in North America, BSPP (parallel) in Europe, or PT (tapered) in Asian markets. When selecting port size, consider:
Flow requirements: Larger ports reduce pressure drop but increase manifold footprint
Fitting availability: Standard sizes (1/8", 1/4", 3/8", 1/2") offer the widest component selection
System pressure: Higher pressures may require larger thread engagement for reliability
Thread Type Compatibility:
Never mix thread standards. NPT (60° taper) and PT/Rc (55° taper) may appear similar but will leak when forced together.BSPP (G) requires O-ring sealing rather than thread sealant.
| Thread Standard | Taper Angle | Sealing Method | Primary Region |
|---|---|---|---|
| NPT | 60° | Thread interference/tape | North America |
| BSPP (G) | 55° parallel | O-ring/gasket | Europe, Asia |
| PT/Rc | 55° taper | Thread sealant | Japan, China |
Station Spacing Considerations:
Spacing between manifold outlets is one of the most commonly forgotten selection elements. Inadequate spacing prevents proper tool access and may cause neighboring components to interfere.
Minimum spacing guidelines:
1/8" ports: 0.75" - 1.0" center-to-center
1/4" ports: 1.0" - 1.25" center-to-center
3/8" ports: 1.25" - 1.5" center-to-center
1/2" ports: 1.5" - 2.0" center-to-center
Always verify with actual valve or fitting dimensions before finalizing port layout.
How Many Stations Do You Need?
Standard manifolds typically offer 2-10 stations, though custom configurations can extend to 20 or more stations. For applications requiring more than 10 stations, consider:
Dual-end supply: Feed air from both ends to maintain pressure at mid-manifold stations
Blanking plates: Specify additional stations beyond current needs for future expansion-
3S International Engineering Support:
Our port configuration service includes dimensional verification, compatibility analysis, and interference checking. We provide detailed port layout drawings before manufacturing begins.
Selection Tool: Submit your valve/fitting specifications and receive a port configuration recommendation with verified spacing and thread compatibility.
